Product Description

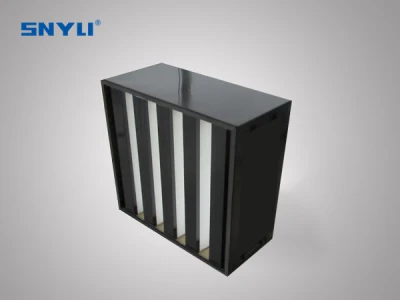

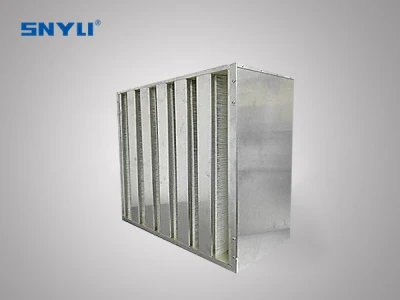

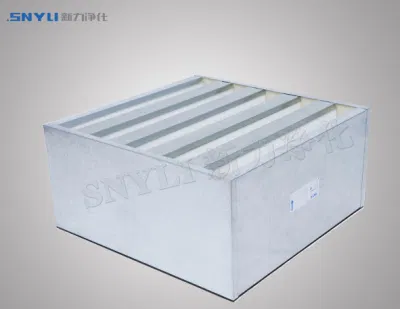

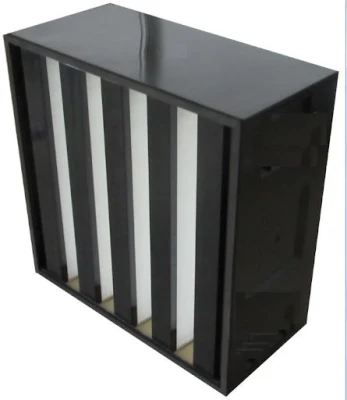

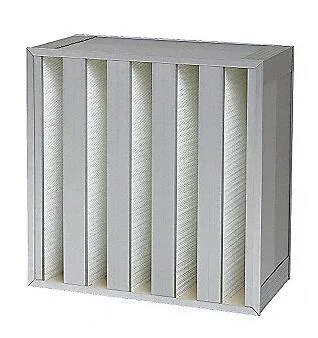

H14 Plastic or Aluminum Frame Fiberglass Material High Efficiency and Medium Efficiency Box Type V Bank Air filter
SPECIFICATIONS| Frame: | Galvanized steel/Aluminum profile/ Stainless steel/ PP |
| Media: | Ultra fine glass fiber |
| Separator : | Hot melt adhesive |
| Std. EN1822:2009 : | H12/H13/H14 |
| Std. IEST RP-CC-001.5: | 2009 TYPE A (MERV 17) / TYPE C (MERV 18) / TYPE D (MERV 19) |
| Efficiency: | 99.97%,99.99%,99.999% at 0.3μm (DOP/PSL/PAO Counting method) |
| Maximum temperature: | 70ºC |
| Maximum relative humidity: | 100% |
| Application: | Mainly used for air conditioning purification equipment needs high ventilation,such as medium filter and terminal filter in air -conditioning system. |
ADVANTAGES
| Mode | Actual size W×H×D(mm) | Air flow (m³/h) | Initial pressure drop(Pa) | Final pressure drop(Pa) | |
| Box type | H4VH305610292 | 305×610×292 | 1700 | 249Pa Face velocity 0.85m/sec | 500Pa *Proposed value |
| H4VH610610292 | 610×610×292 | 3400 | |||
| Single Header type | H4VH287592292 | 287×592×292 | 1700 | 265Pa Face velocity 0.45m/sec | 220Pa *Proposed value |
| H4VH592592292 | 592×592×292 | 3400 | |||
Q1.Are you a manufacture or trading company?
A:We are a manufacure.
Snyli Environmental Technology (Shandong) Co., Ltd was established in 2010, is a professional service provider of air purification products integrating R&D, production and sales, with registered brand- SYNLI.
Q2: Where are air filters commonly used?
A :HAVC(heating, air conditioning and ventilation systems) painting stations, chemical plants, pharmaceutical plants, cement or asphalt powder plants, clean rooms, power stations, heavy metal industries, gas turbines and cogeneration power plants, engineering and equipment plants, drying and baking rooms, hospitals, etc.
Q3: What are your testing criteria?
A: EN779:2012 ISO9001
Q4: What is the international standard for air filters?
A:Euro :Pre (G1-G4), Medium (F5-F9), HEPA (H10-H14) ULPA (U15-U17)
American :Pre (MERV5-7), Medium (MERV8-14), HEPA (MERV15-19) ULPA(MERV 20)
Q5: What is your sample policy?
A: The sample price will be the product price of the standard order. If you make a demo order after receiving the sample and proofing (reaching our MOQ), we will roughly understand the sample price and sample price in the order, and give us your MOQ price.
Q6: How about your after-sales service?
A: Even if we have confidence in the quality of our products, the products may be damaged due to some unpredictable reasons. Please use and maintain the products you purchased correctly in accordance with the user manual or the recommendations of the sales staff. Contact the household to understand the usage of the product, provide suggestions or support professional maintenance services according to the warranty policy.
